| Model |

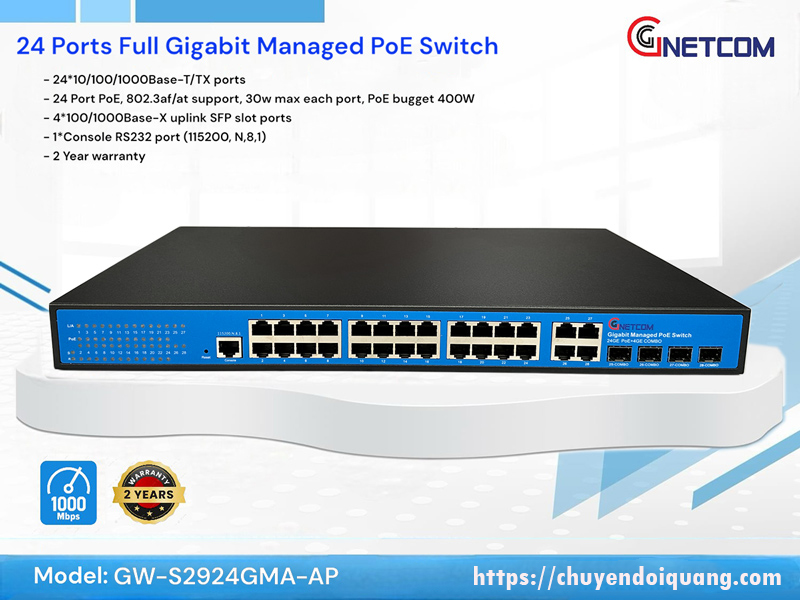

GW-S2924GMA-AP |
| Fixed Port |
24*10/100/1000Base-T/TX PoE ports (Data/Power)
4*combo ports (Data)
1 * RS232 console port (115200, N,8,1) |
| Ethernet Port |
10/100/1000Base-T(X), Auto-Detection, Full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)
1000BASE-T: Cat5e or later UTP (≤100 meter) |
| SFP Slot Port |
Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
| Optical Cable |
Multi-mode: 850nm 0 ~ 550M, single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. |
| Network Management Type |
L2+ |
| Network Protocol |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000base-X;
IEEE802.3x. |
| Forwarding Mode |
Store and Forward |
| Switching Capacity |
56Gbps (Non-blocking) |
| Forwarding Rate |
26.78Mpps |
| MAC |
8K |
| Buffer Memory |
6M |
| Jumbo Frame |
9.6K |
| LED Indicator |
Power indicator: PWR (Green);
Network indicator: 1-24(Link/Act)/ (Orange),25-28(Link/Act)/ (Green);
POE indicator: PoE (Green)
SYS:(Green) |
| Reset Switch |
Yes, One-button factory reset |
| PoE Port |
Port 1 to 24, IEEE802.3af/at @ POE |
| PoE Management |
Total power limit of PoE power supply
PoE output power allocation, off& af &at
PoE output priority configuration
PoE working status
Delay start of power supply
Scheduling of PoE operation and time |
| Power Supply Pin |
Default 1/2 (+), 3/6 (-) |
| Max Power Per Port |
30W; IEEE802.3af/at |
| Total PWR / Input Voltage |
400W (AC100-220V) |
| Power Consumption |
Standby<8W, Full Load<400W |
| Power Supply |
Built-in power supply, AC 100~220V 50-60Hz |
| Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
| Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing |
| Dimension (L*W*H) |
440*290*44.5mm |
| Net /Gross Weight |
| Installation |
Desktop, 19-inch 1U cabinet |
| Protection |
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV |
| Protection Level |
IP30 |
| Certification |
CCC, CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS |
| Warranty |
2 years, lifelong maintenance. |
| Interface |
IEEE802.3X (Full-duplex)
Port temperature protection setting
Port green Ethernet Energy-saving setting
Broadcast storm control based on port speed
The speed limit of the message flow in the access port.
The minimum particle size is 64Kbps. |
| Layer 3 Features |
L2+ network management,
IPV4/IPV6 management
L3 soft routing forwarding,
Static route, Default route @ 128 pcs, APR @ 1024 pcs |
| VLAN |
4K VLAN based on port, IEEE802.1q
VLAN based on the protocol
VLAN based on MAC
Voice VLAN, QinQ configuration
Port configuration of Access, Trunk, Hybrid |
| Port Aggregation |
LACP, Static aggregation
Max 9 aggregation groups and 8 ports per group. |
| Spanning Tree |
STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
| Industrial Ring Network Protocol |
G.8032 (ERPS), Recovery time less than 20ms
250 Ring at most, Max 254 devices per ring. |
| Multicast |
MLD Snooping v1/v2, Multicast VLAN
IGMP Snooping v1/v2, Max 250 multicast groups, Fast log out |
| Port Mirroring |
Bidirectional data mirroring based on port |
| QoS |
Flow-based Rate Limiting
Flow-based Packet Filtering
8*Output queues of each port
802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR) |
| ACL |
Port-based Issuing ACL, ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. |
| Security |
IP-MAC-VLAN-Port binding
ARP inspection, Anti-DoS attack
AAA & RADIUS, MAC learning limit
Mac black holes, IP source protection
IEEE802.1X & MAC address authentication
Broadcast storm control, Backup for host datum
SSH 2.0, SSL, Port isolation, ARP message speed limit
User hierarchical management and password protection |
| DHCP |
DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay |
| Management |
One-key recovery
Cable Diagnose, LLDP
Web Management (HTTPS)
NTP, System work log, Ping Test
CPU instant utilization status view
Console/AUX Modem/Telnet/SSH2.0 CLI
Download & Management on FTP, TFTP, Xmodem, SFTP, SNMP V1/V2C/V3
NMS - smart network management system platform (LLDP+SNMP) |
| System |
Category 5 Ethernet network cable
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later;
TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
