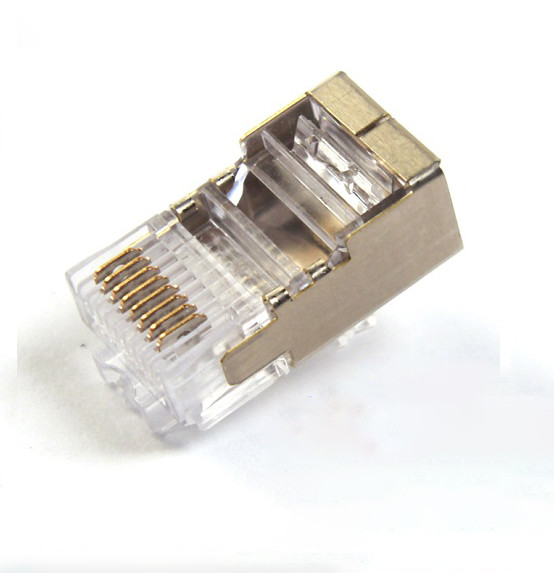

Hạt Mạng Commscope Cat5 FTP 569530-3 | chống nhiễu

Còn hàng

SKU

569530-3

Rating:

100% of 100

4 Đánh giá

Giá: Liên hệ

Tổng quan

Hạt Mạng AMP ( 6-569530-3 ) Category 5 Modular Plug, Shielded, RJ45, 26-24AWG, Solid (MJPLUG, 8P, RND, SLD, SHLD, 24 26 AWG)

Modular Plug Kit, 8P/8C, shielded, round, 5.1 mm max cable jack OD, 8-position, category 5, 100/bag

Regulatory Compliance/Certifications

Product Classification
Portfolio	CommScope®
Product Type	Modular plug
Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America

Dimensions
Compatible Cable Diameter, maximum	5.08 mm \| 0.20 in
Compatible Cable Diameter, minimum	4.83 mm \| 0.19 in
Compatible Insulated Conductor Diameter, maximum	0.990 mm \| 0.039 in
Compatible Insulated Conductor Diameter, minimum	0.860 mm \| 0.034 in

Electrical Specifications
ANSI/TIA Category	5
Current Rating, maximum	0.75 A
Insulation Resistance, minimum	500 mOhm
Safety Voltage Rating	150 Vac

Environmental Specifications
Operating Temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Relative Humidity	Up to 93%, non-condensing
Safety Standard	UL 1863

General Specifications
Cable Type	Round, shielded
Interface	RJ45
Package Quantity	100
Packaging Type	Bag \| Box \| Carton
Positions/Loaded Contacts	8/8

Mechanical Specifications
Conductor Gauge, solid	26–24 AWG
Conductor Gauge, stranded	26–24 AWG
Conductor Type	Solid \| Stranded
Contact Base Material	Phosphor bronze
Contact Plating Material	Gold
Contact Plating Thickness	1.27 µm
Material Type	Glass filled polycarbonate
Plug Insertion Life, minimum	750 times
Plug Shield Base Material	Copper alloy
Plug Shield Plating Material	Nickel
Termination Type	IDC
